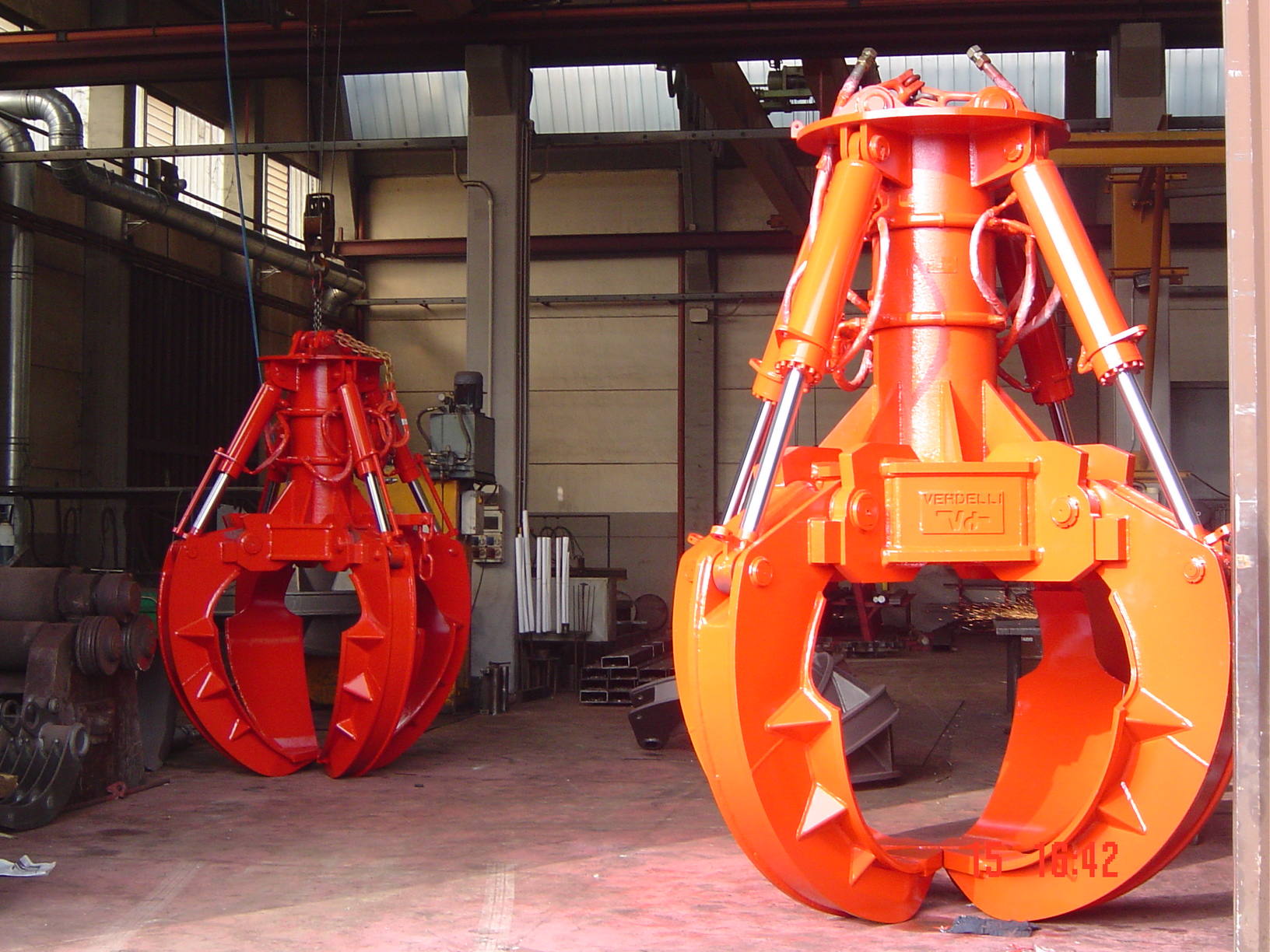

Tenaglione idraulico |
Stone grab |
Attrezzatura ideale per la posa di massi nella costruzione delle scogliere, il tenaglione idraulico viene attaccato ad un escavatore a funi e per il funzionamento deve usare un impianto montato sulla macchina. I diversi modelli sono forniti con tre, quattro o cinque chele, secondo le esigenze del cliente e la forma del masso o dei tetrappoli da movimentare. Le chele sono costruite con acciai speciali anti-usura e rinforzate internamente nei punti di maggior sforzo. |
Hydraulic tool for placing rocks in the construction of the cliffs, grab the stone is attached to a mechanical excavator ropes with two winches. The different models are provided with three, four or five teeth, according to the needs of the customer and the shape of the rock to be moved. The claws are made using special anti-wear and internally reinforced at the points of max stress. |
POTENZA | |||||||||
MODELLO |
PORTATA CAPACITY |
GAMBE |
PER GAMBA TEETH POWER |
PRESS. |
PESO WEIGHT |
||||
MODEL | Kg. | N° | Kg. | Kg./cmq. | Kg. | A | B | C | D |
T.I. 3/ 5 | 5000 | 3 | 2000 | 160 | 1000 | 1500 | 1900 | 1950 | 1650 |
T.I. 4/ 5 | 5000 | 4 | 2000 | 160 | 1300 | 1500 | 1900 | 1950 | 1650 |
T.I. 5/ 5 | 5000 | 5 | 1800 | 150 | 1600 | 1500 | 1900 | 1950 | 1650 |
T.I. 6/ 5 | 5000 | 6 | 1800 | 150 | 1900 | 1500 | 1900 | 1950 | 1650 |
T.I. 3/10 | 10000 | 3 | 3500 | 170 | 1600 | 1900 | 2600 | 2550 | 2200 |
T.I. 4/10 | 10000 | 4 | 3500 | 170 | 2000 | 1900 | 2600 | 2550 | 2200 |
T.I. 5/10 | 10000 | 5 | 3000 | 150 | 2400 | 1900 | 2600 | 2550 | 2200 |
T.I. 6/10 | 10000 | 6 | 3000 | 150 | 2800 | 1900 | 2600 | 2550 | 2200 |
T.I. 3/15 | 15000 | 3 | 5000 | 180 | 2500 | 2200 | 3000 | 2900 | 2500 |
T.I. 4/15 | 15000 | 4 | 4200 | 160 | 3200 | 2200 | 3000 | 2900 | 2500 |
T.I. 5/15 | 15000 | 5 | 4000 | 150 | 3900 | 2200 | 3000 | 2900 | 2500 |
T.I. 6/15 | 15000 | 6 | 4000 | 150 | 4600 | 2200 | 3000 | 2900 | 2500 |
T.I. 3/20 | 20000 | 3 | 6000 | 200 | 4400 | 2500 | 3500 | 3100 | 3000 |
T.I. 4/20 | 20000 | 4 | 5000 | 180 | 5600 | 2500 | 3500 | 3100 | 3000 |
T.I. 5/20 | 20000 | 5 | 4500 | 160 | 6800 | 2500 | 3500 | 3100 | 3000 |
T.I. 6/20 | 20000 | 6 | 4200 | 150 | 8000 | 2500 | 3500 | 3100 | 3000 |
T.I. 3/30 | 30000 | 3 | 6500 | 200 | 6300 | 2800 | 4000 | 3400 | 3000 |
T.I. 4/30 | 30000 | 4 | 5500 | 180 | 7500 | 2800 | 4000 | 3400 | 3000 |
T.I. 5/30 | 30000 | 5 | 5000 | 160 | 8700 | 2800 | 4000 | 3400 | 3000 |
T.I. 6/30 | 30000 | 6 | 4500 | 150 | 10000 | 2800 | 4000 | 3400 | 3000 |
