Polipo idraulica Serie P |
|
Hydraulic orange peel grab Serie P |
| MODELLO | CAPAC. |
VALVE PEEL |
PRESS. |
POTENZA PER VALVA PEEL POWER |
TEMPI TIME |
PESO WEIGHT |
|||||
| MODEL | mc. | n° | Kg./cmq. | Kg. |
Apert. OP. |
Chius. CL. |

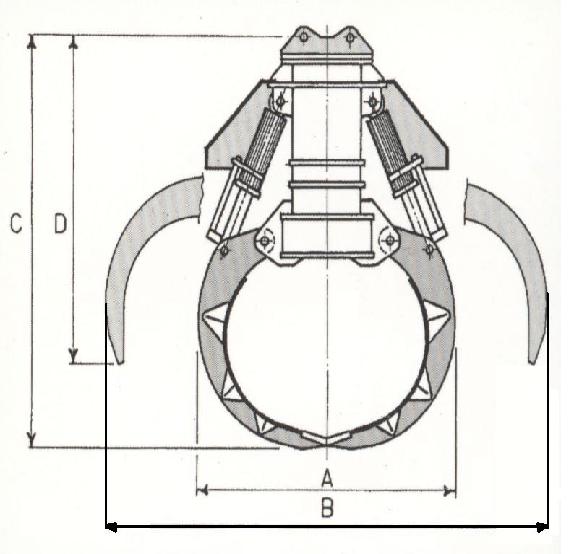

Kg. | A | B | C | D |
| P.I. 6/ 600 P | 0,60 | 6 | 140 | 1400 | 5" | 8" | 1250 | 1500 | 2350 | 1800 | 1500 |
| P.I. 6/ 750 P | 0,75 | 6 | 140 | 1400 | 5" | 8" | 1500 | 1600 | 2300 | 1900 | 1600 |
| P.I. 6/1000 P | 1 | 6 | 140 | 1400 | 5" | 8" | 1600 | 1700 | 2700 | 2050 | 1750 |
| P.I. 6/1200 P | 1,20 | 6 | 160 | 1600 | 5" | 8" | 1700 | 1800 | 2700 | 2150 | 1800 |
| P.I. 6/1500 P | 1,50 | 6 | 160 | 2000 | 8" | 12" | 2500 | 1950 | 3150 | 2300 | 1850 |
| P.I. 8/1000 P | 1 | 8 | 150 | 1500 | 6" | 9" | 2000 | 1700 | 2700 | 2050 | 1750 |
| P.I. 8/1200 P | 1,20 | 8 | 160 | 1600 | 5" | 8" | 2150 | 1800 | 2700 | 2150 | 1800 |
| P.I. 8/1500 P | 1,50 | 8 | 160 | 2000 | 8" | 12" | 3000 | 1950 | 3150 | 2300 | 1850 |
| P.I. 8/2000 P | 2 | 8 | 160 | 2000 | 8" | 12" | 4000 | 2200 | 3500 | 2450 | 2050 |
| P.I. 8/2500 P | 2,50 | 8 | 160 | 3000 | 9" | 15" | 4800 | 2500 | 3700 | 2800 | 2400 |
| P.I. 8/3000 P | 3 | 8 | 160 | 3000 | 9" | 15" | 5400 | 2700 | 3900 | 2900 | 2600 |
| P.I. 8/3500 P | 3,50 | 8 | 160 | 3300 | 12" | 18" | 6000 | 2750 | 4050 | 2900 | 2600 |
| P.I. 8/4000 P | 4 | 8 | 160 | 3300 | 12" | 18" | 6500 | 2850 | 4300 | 3000 | 2600 |
| P.I. 8/4500 P | 4,50 | 8 | 160 | 3300 | 12" | 18" | 7000 | 2850 | 4350 | 3000 | 2700 |
| P.I. 8/5000 P | 5 | 8 | 160 | 3300 | 12" | 18" | 7500 | 2900 | 4500 | 3000 | 2700 |
