Mordente da demolizione |
Demolition clamshell |
Le mordenti da demolizione sono state studiate per la demolizione di strutture non in cemento armato ma fatte con materiale leggero tipo mattone e legno, per selezionare le macerie per un buon recupero ambientale del materiale e per separare e spostare in modo specifico il materiale inerte derivante dalla demolizione. |
The demolition grab have been studied not for the demolition of structures in reinforced concrete but made for light weight material like brick and wood, to select the rubble for a good environmental recovery of the material and to separate and move in a inert material resulting from demolition. |

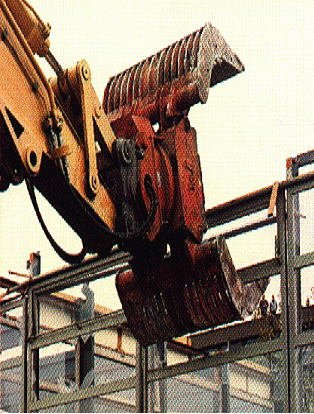

PICTURES |
|
|
|
|
MODELLO MODEL |
PRESS. OLIO OIL PRESS. |
PESO
OTTIMALE ESCAVATORE WEIGHT EXCAVATOR |
PORTATA
OLIO OIL FLOW |
POTENZA DI
SERR. IN TON CRUSHING POWER |
PESO
WEIGHT |

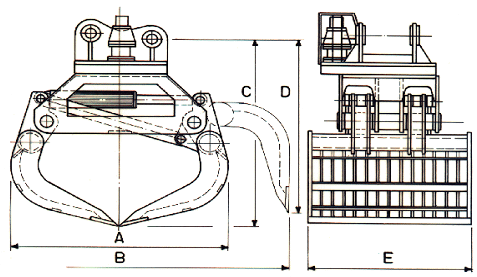

DIMENSIONI
|
||||
Bar | Ton. | Lt | Ton. | Kg. | A | B | C | D | E | |
M.I.D. 3 | 280 | 3,6-4,4 | 30 | 2 | 350 | 800 | 1650 | 1250 | 1050 | 520 |
M.I.D. 5 | 280 | 5,5,-8,5 | 80 | 5 | 500 | 850 | 1700 | 1300 | 1150 | 600 |
M.I.D. 8 | 300 | 12-14 | 120 | 8 | 850 | 1000 | 1850 | 1350 | 1300 | 700 |
M.I.D. 12 | 320 | 12-16 | 150 | 10 | 1200 | 1200 | 1950 | 1400 | 1350 | 900 |

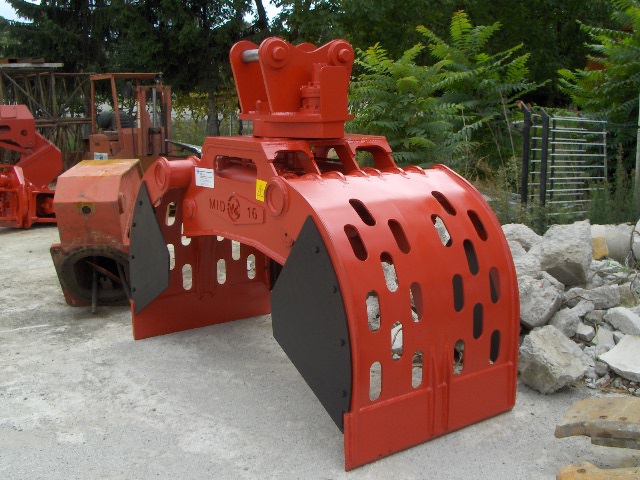

M.I.D. 16 | 320 | 16-20 | 180 | 10 | 1600 | 1400 | 2000 | 1500 | 1420 | 1050 |
M.I.D. 20 | 320 | 18-24 | 200 | 15 | 2000 | 1400 | 2100 | 1700 | 1620 | 1150 |
M.I.D. 25 | 320 | 22-26 | 220 | 15 | 2500 | 2150 | 2150 | 1900 | 1750 | 1500 |
