Frantumatore pali fisso serie FIPQ |
Fixed pilebreaker serie FIPQ |
Il frantumatore idraulico FIPQ è stato studiato per la frantumazione dei pali quadri. La carattersitca positiva dell'attrezzature è l'uso del sistema 'chain system', gli elementi utilizzati sono gli elementi del FIP leggero, nel caso ci fosse un lavoro con i pali tondi è possibile riutilizzare gli elementi e crare un nuovo FIP. |
The FIPQ is designed for crushing of square poles. The positive feature of the equipment is the use of the 'chain system', the elements used are the elements of the FIP light, in case there was a job with the round poles can be reused elements and crare a new pilebreaker. |
MODELLO |
PORT. OLIO OIL FLOW |
PESO ESCAV. WEIGHT EXCAV. |
OLIO OIL |
ELEMENTI ELEMENTS |
PUNTE TIPS |
MAGLIA MESH |
PESO WEIGHT |

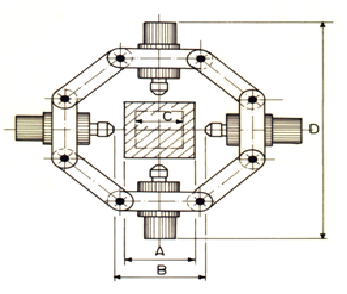

DIM. mm.
|
|||
MODEL | BAR | TON. | L. | NUM. | TIPO | TIPO | Kg. | A | B | C | D |
F.I.P.Q. 250 | 300 | 7 | 80 | 4A | L210 | 4B | 660 | 250 | 380 | 80 | 1600 |
F.I.P.Q. 300 | 300 | 7 | 80 | 4A | L210 | 4B | 660 | 300 | 380 | 80 | 1600 |
F.I.P.Q. 350 | 300 | 7 | 80 | 4A | M185 | 4B | 660 | 350 | 430 | 130 | 1600 |
F.I.P.Q. 400 | 300 | 7 | 80 | 4A | C160 | 4B | 660 | 400 | 480 | 180 | 1600 |
F.I.P.Q. 450 | 300 | 7 | 80 | 4A | M185 | 4BS | 680 | 450 | 490 | 190 | 1700 |
F.I.P.Q. 500 | 300 | 7 | 80 | 4A | C160 | 4BS | 680 | 500 | 540 | 240 | 1700 |
F.I.P.Q. 500 | 300 | 10 | 120 | 4D | L210 | 4E | 1100 | 500 | 550 | 250 | 1800 |
F.I.P.Q. 550 | 300 | 10 | 120 | 4D | M185 | 4E | 1100 | 550 | 600 | 300 | 1800 |
F.I.P.Q. 600 | 300 | 10 | 120 | 4D | C160 | 4E | 1100 | 600 | 650 | 350 | 1800 |
F.I.P.Q. 650 | 300 | 15 | 120 | 4D | L210 | 4B | 1000 | 650 | 690 | 390 | 2000 |
F.I.P.Q. 700 | 300 | 15 | 120 | 4D | M185 | 4B | 1000 | 700 | 740 | 440 | 2000 |
F.I.P.Q. 750 | 300 | 15 | 120 | 4D | C160 | 4B | 1000 | 750 | 790 | 490 | 2000 |
