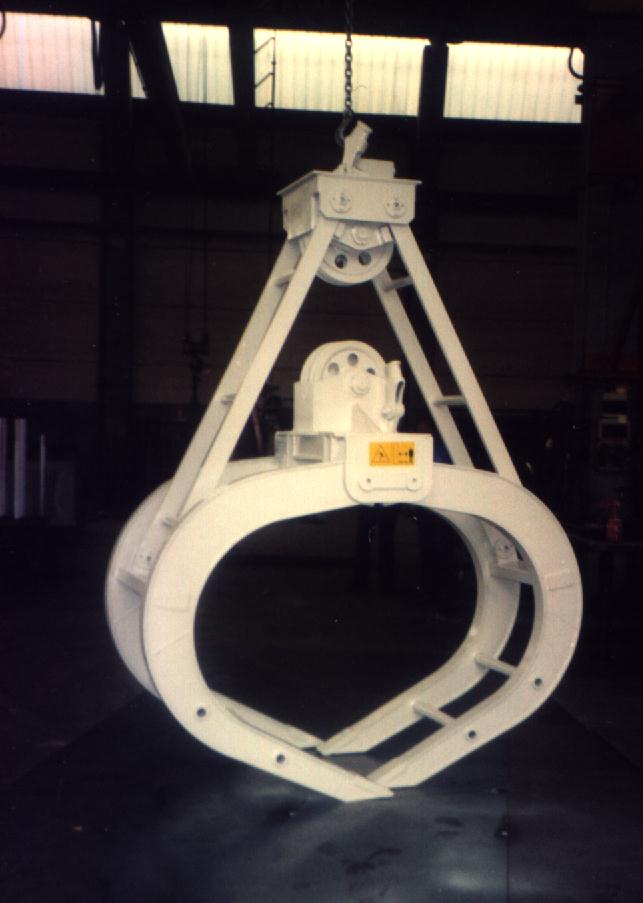

Forca meccanica 2 funi Serie FM2 |
Timber mechanical grab 2 ropes Serie FM2 |
Attrezzatura ideale per la presa di tronchi di legname, la forca meccanica viene attaccata ad un escavatore a funi con due argani di manovra. Le forche sono costruite con acciai speciali anti-usura e rinforzate internamente nei punti di maggior sforzo. |
Ideal equipment to move timber logs, the timber grab is attached to a mechanical excavator ropes with two winches. The forks are made in special steel and internally reinforced at the points of big stress. |
MODELLO MODEL |
PORTATA CAPACITY |
FUNE ROPE |
CARRUC. PULLEIES |
PESO WEIGHT |

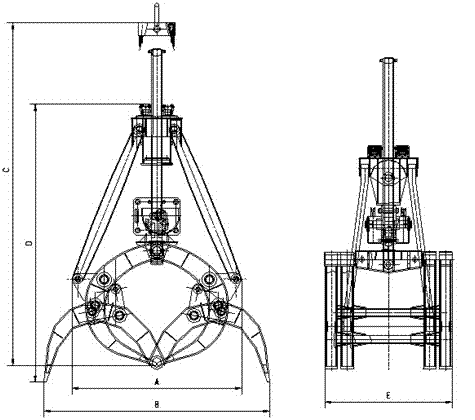

DIMESIONI DIMENSIONS |
||||
TIPO | Kg. | Ø mm | Ø mm | Kg.* | A | B | C* | D* | E |
F.M. 1000 | 1000 | 24 | 400 | 2300 | 2100 | 2600 | 4000 | 3100 | 1500 |
F.M. 1600 | 1600 | 24 | 440 | 3600 | 3400 | 4600 | 5400 | 4365 | 2000 |
