Forca idraulica

Hydraulic timber grab






Attrezzatura ideale per la movimentazione di tronchi di legname. L'attrezzatura viene attaccata ad un escavatore idraulico e puņ essere fornita con la rotazione idraulica.
Le forche sono di due tipi: una per presa di tronchi in fasce e una fornita di cavo d'acciaio per tenere i tronchi legati

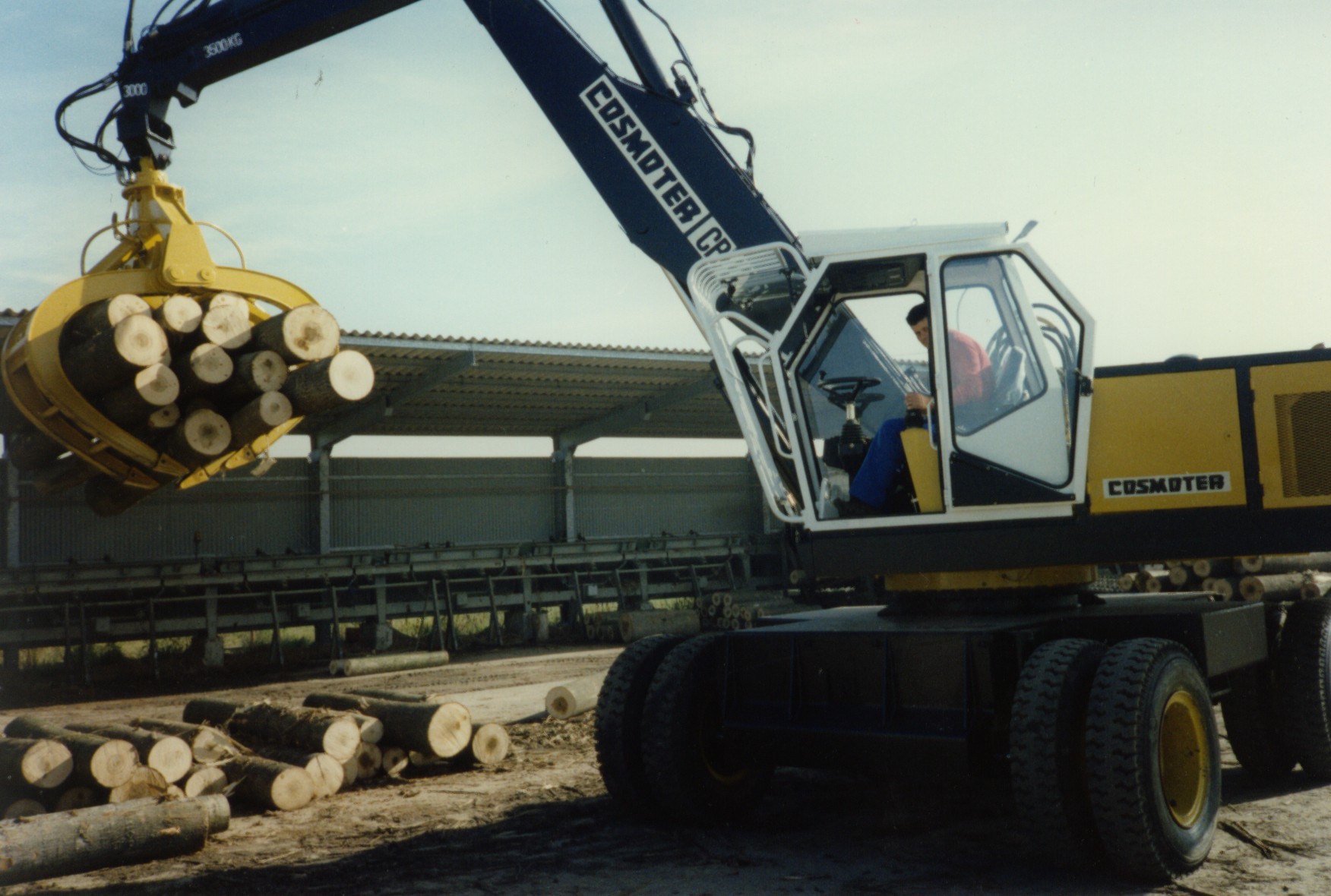

Ideal equipment for handling timber logs. The equipment is attached to a hydraulic excavator and can be supplied with hydraulic rotation.

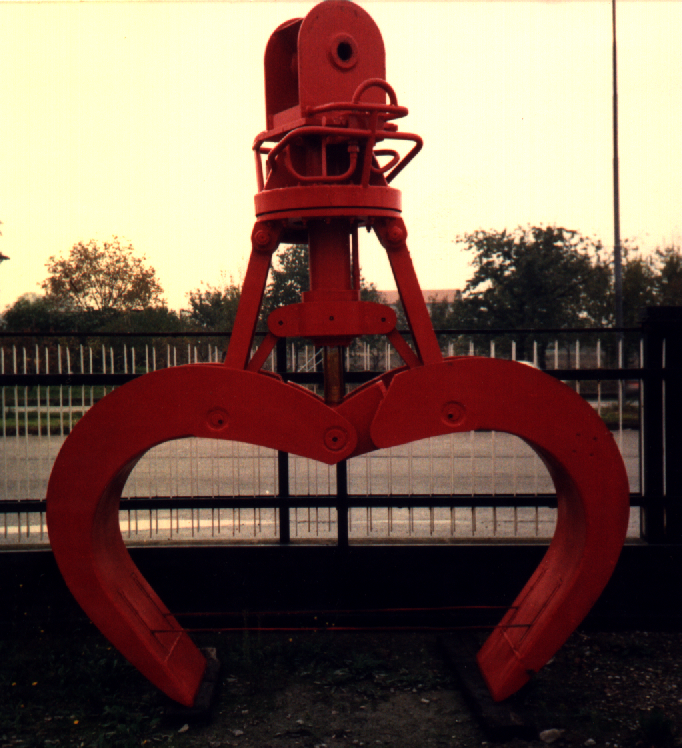

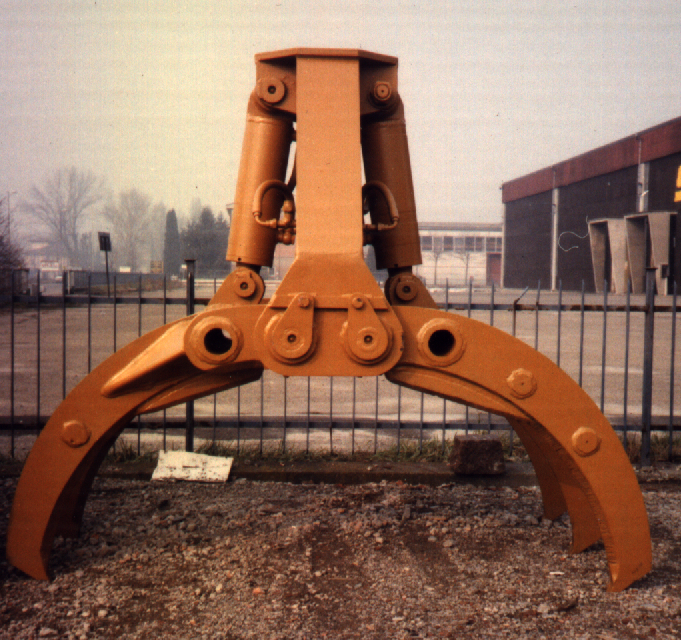

The forks are of two types: one to hold the logs into groups and provided with a steel cable
to keep logs tied

testo alternativo

testo alternativo
testo alternativo

testo alternativo






















MODELLO

MODEL

CAPACITA'

CAPACITY

FORZA DI PRESA

LOAD POWER

PRESSIONE

PRESS.

PESO

WEIGHT

DIMENSIONI

DIMENSIONS

Lt Kg. Bar Kg
A
B
C
D
E
F.I. / 5
0,8
4000 200 1400 1650 2300 2000 1650 600
F.I. / 8 1 6000 200 1700 1800 2500 2100 1750 600
F.I. /10 1,25 8000 200 2000 1950 2600 2200 1850 600
