Forca elettroidraulica |
Electrohydraulic timber grab |

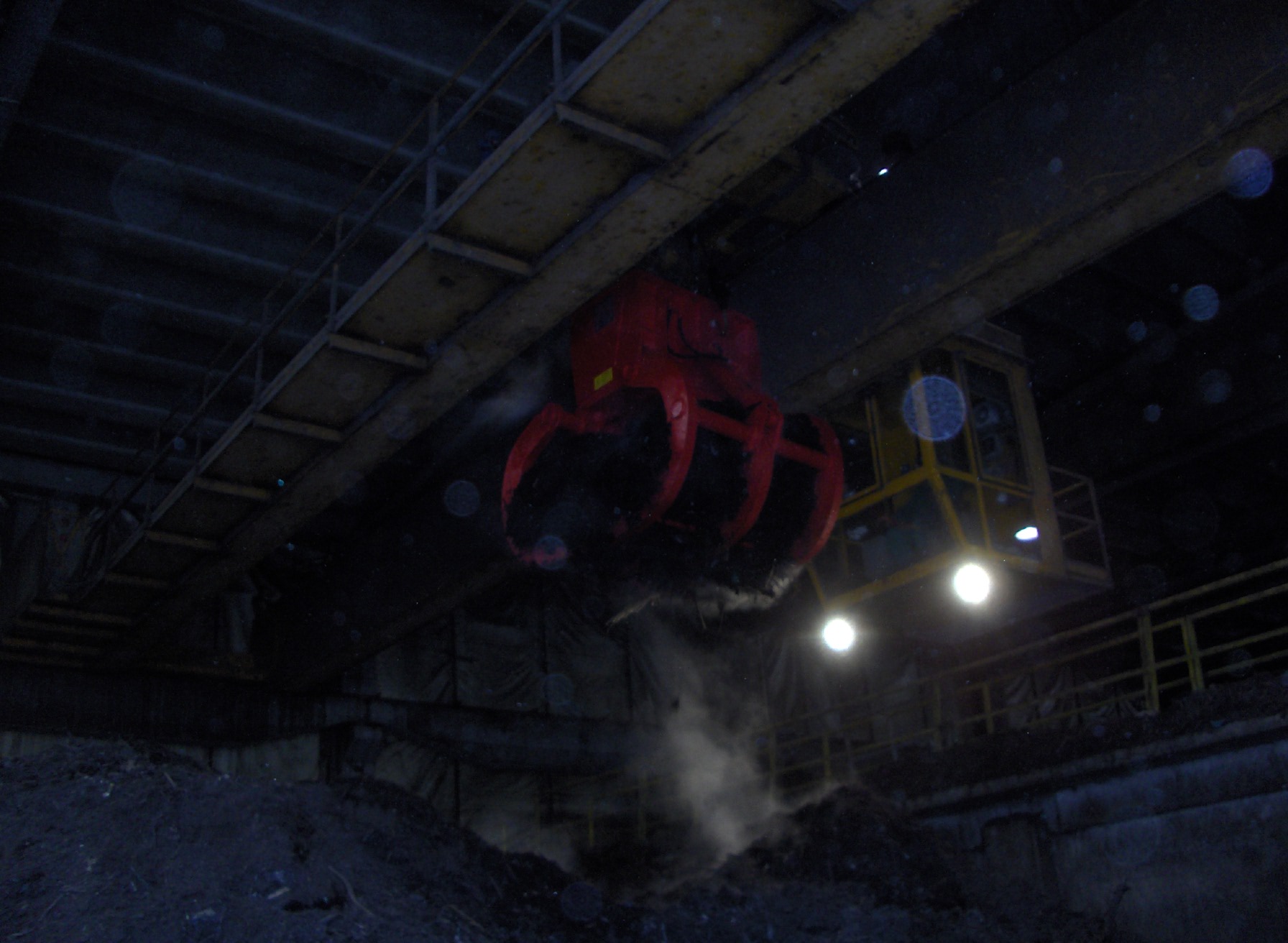

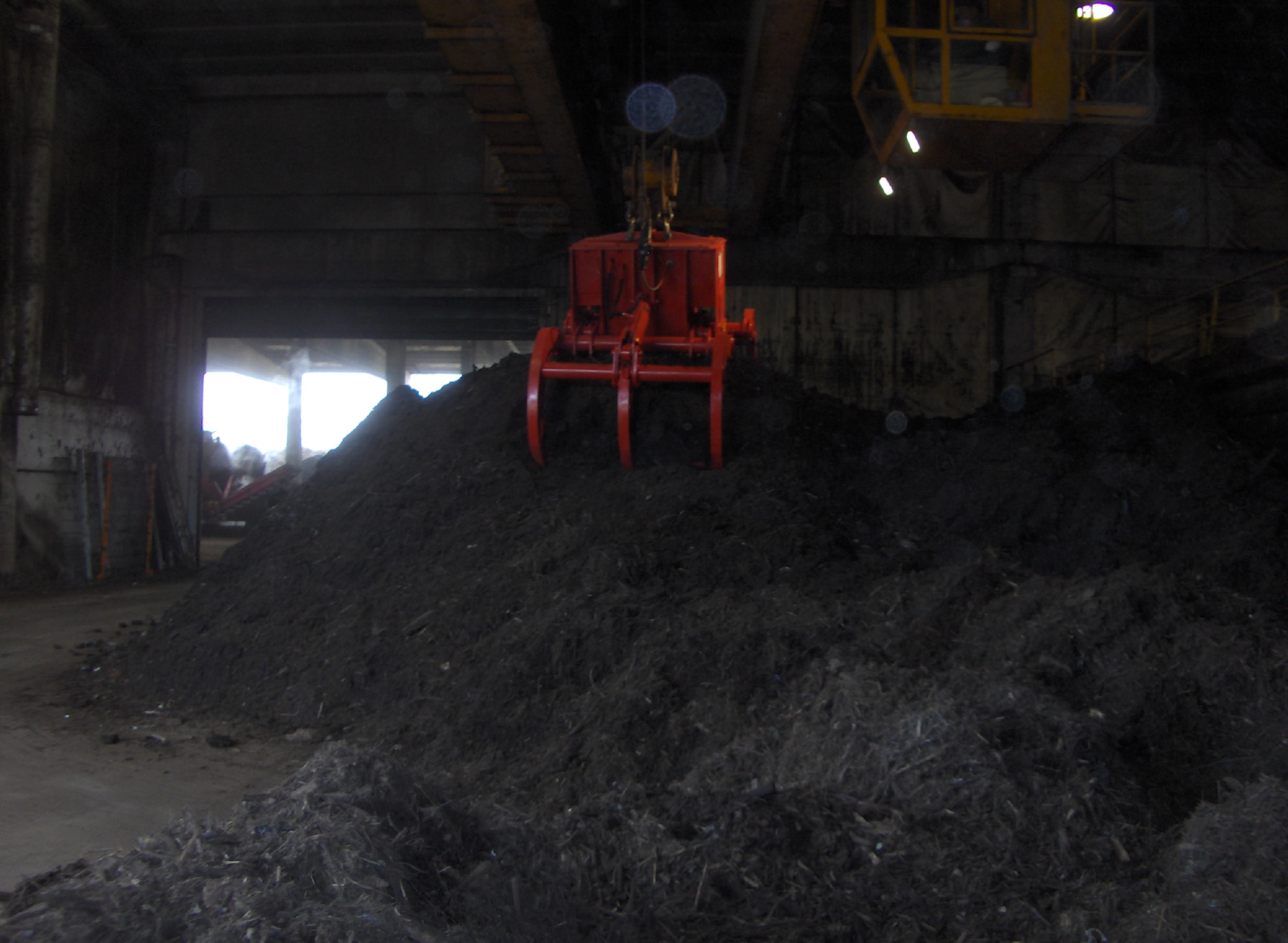

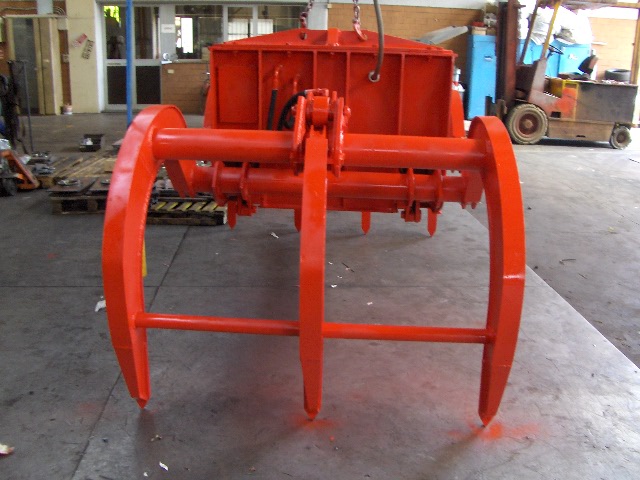

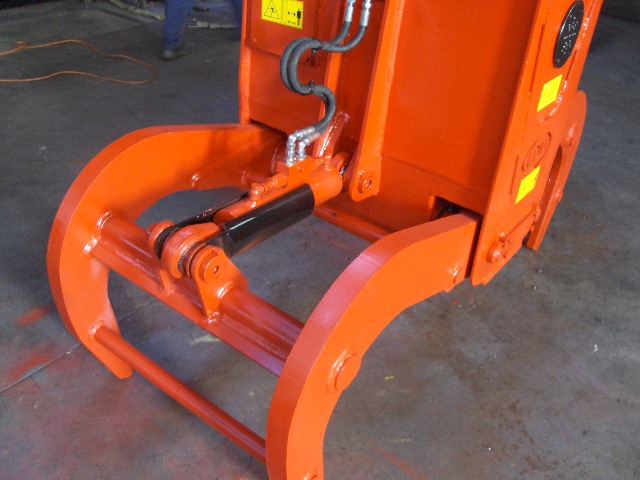

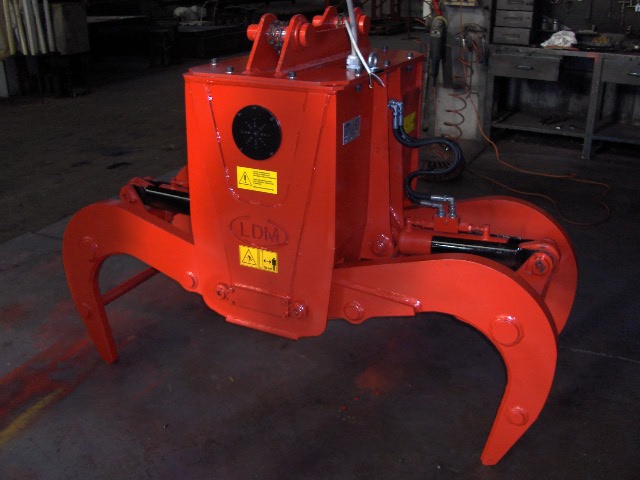

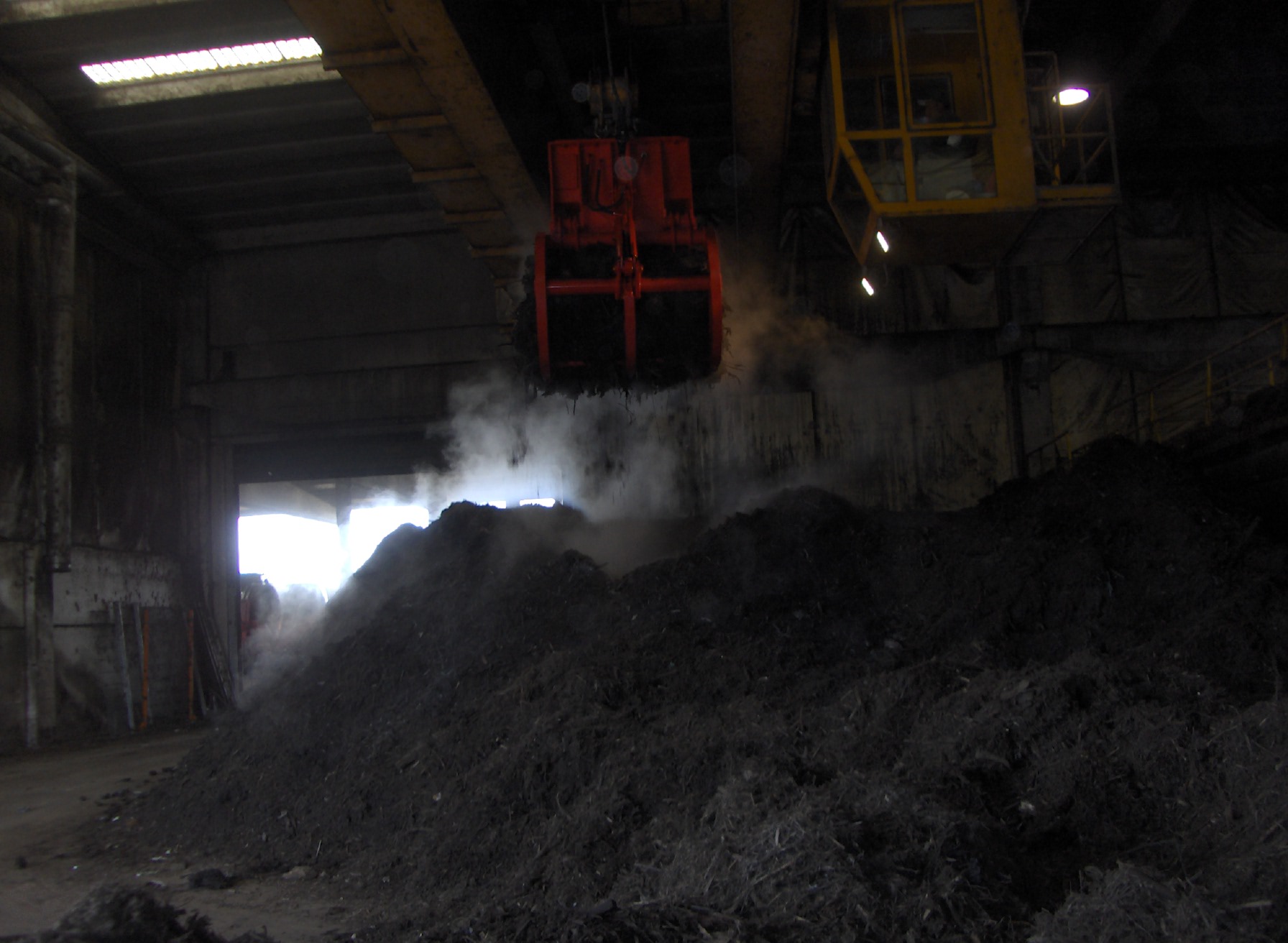

Attrezzature usate per la movimentazione di legname, tronchi o cippato; dotate al loro interno di una centralina idraulica studiata per mantenere costante la pressione nei cilindri, cosė da impedire la perdita del carico. Di queste attrezzature sono disponibili due versioni: una versione per prendere fasci e bloccando il legno con funi tenute in tensione da molle ; la seconda versione utilizzato per i tronchi pių grossi, con punte che permettono una presa sul tronco singolo. |
Equipment used for handling of timber, logs or wood chips; inside them ther's a hydraulic power unit studied to maintain a constant pressure in the cylinders, so as to prevent the loss of material. These equipments are available in two versions: one version to take with wooden beams and blocking the ropes held in tension by springs, while the second version used for the trunks larger, with peaks that allow a single grip on the trunk. |
MODELLO MODEL |
PORTATA LOAD |
MOTORE ENGINE |
PRESS. |
FORZA POWER |
TEMPI TIME |
PESO WEIGHT |

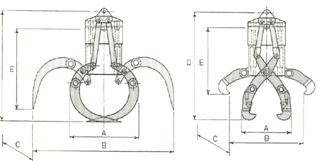

DIMENSIONI DIMENSIONS |
|||||
Kg. | Kw | Bar | Kg | AP. OP. |
CH. CL. |
Kg |
A |
B |
C |
D |
E | |
F.E. / 5 | 5000 | 7,5 | 160 | 4000 | 6 | 9 | 1300 | 1400 | 2800 | 1400 | 1700 | 1700 |
F.E. /10 | 10000 | 11 | 160 | 7000 | 7 | 11 | 1500 | 1650 | 3400 | 1600 | 2000 | 2000 |
F.E. /15 | 15000 | 11 | 180 | 10000 | 7 | 11 | 1800 | 1900 | 3800 | 1800 | 2200 | 2200 |
F.E. /20 | 20000 | 11 | 180 | 12500 | 9 | 12 | 2000 | 2200 | 4300 | 2000 | 2400 | 2400 |
F.E.E. /15 | 15000 | 11 | 180 | 10000 | 8 | 14 | 1500 | 1000 | 1500 | 750 | 2300 | 1300 |
F.E.E. /20 | 20000 | 11 | 180 | 12500 | 8 | 14 | 1700 | 1100 | 1650 | 800 | 2400 | 1400 |
F.E.E. /25 | 25000 | 15 | 180 | 15000 | 9 | 15 | 1900 | 1200 | 1800 | 850 | 2500 | 1500 |
F.E.E. /30 | 30000 | 15 | 180 | 20000 | 9 | 15 | 2100 | 1300 | 2000 | 1000 | 2600 | 1600 |
