Cesoia Idraulica cilindro orizzontale |
Orizontal shear |

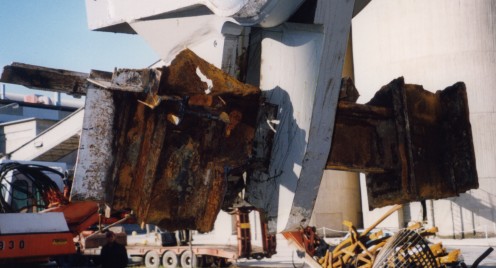

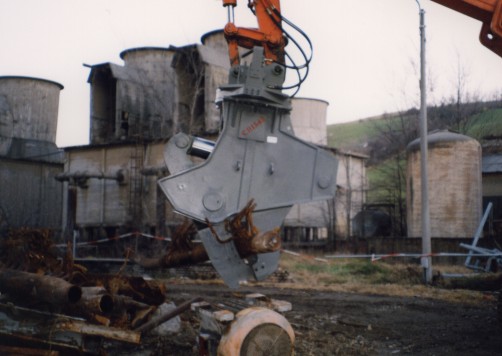

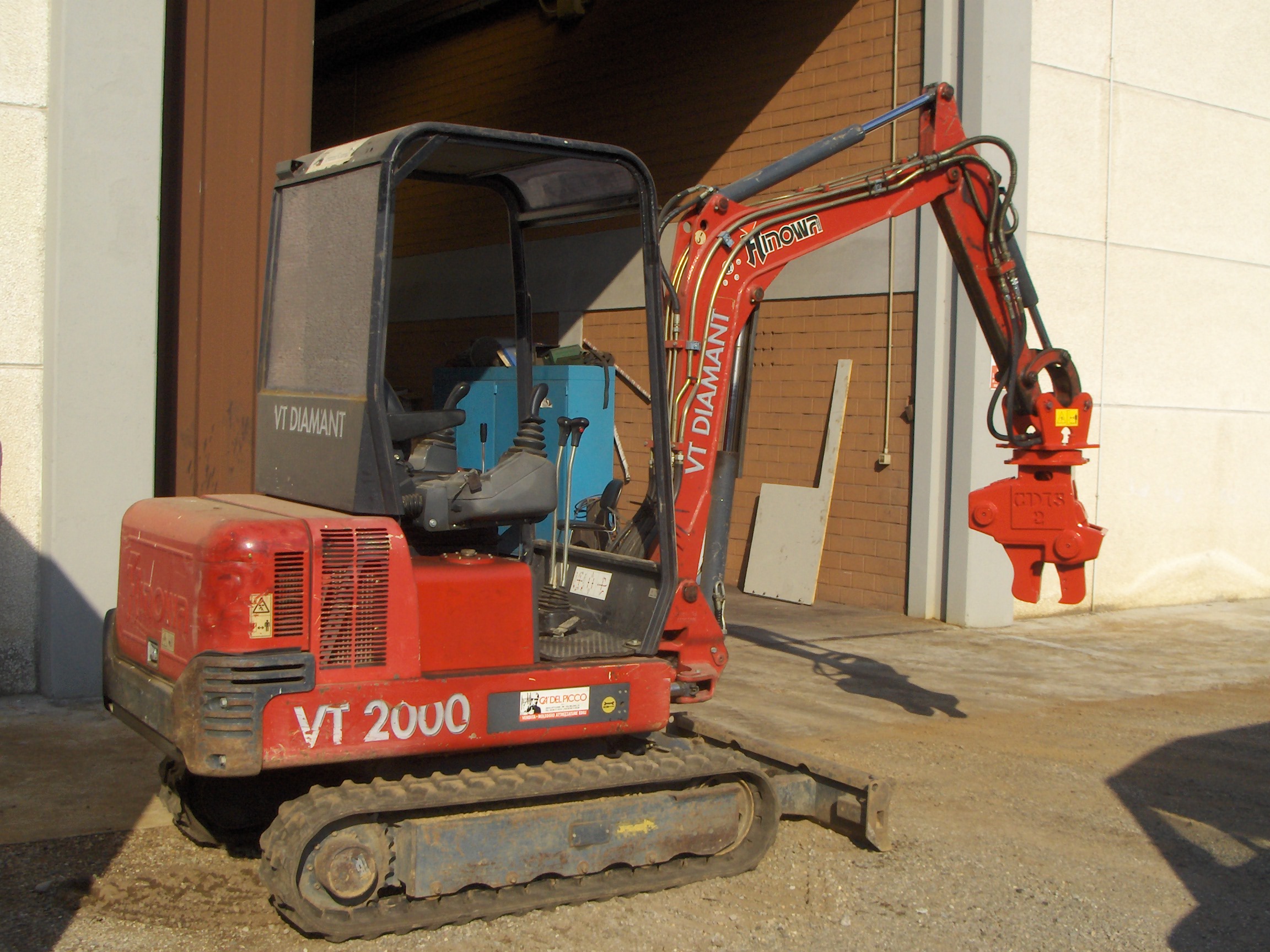

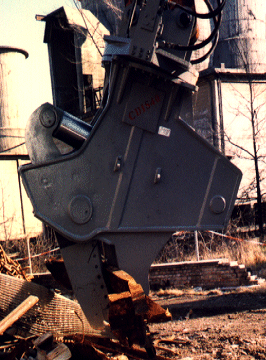

La gamma C.D.I.S. è studiata espressamente per la cesoiatura dei metalli in genere. La sua particolare forma permette un’ utilizzo sia nei lavori di demolizione aerea, sia nel lavoro a terra dei magazzini di recupero. Interamente costruita in acciaio antiusura della migliore qualità esistente sul mercato ha subito miglioramenti sostanziali nella sua capacità di taglio, grazie alle osservazioni degli operatori del settore demolizione e riciclaggio. Resta intatto il concetto della rotazione idraulica 360° continua che per primi abbiamo introdotto su queste particolari attrezzature. I modelli disponibili possono essere montati partendo dai miniescavatori fino a macchine di 45 Ton. di peso. |
The range C.D.I.S. is designed specifically for cutting metals. Its special shape allows its' use in and around overhead demolition jobs, both at work in the land of the recycling sheds. Entirely made of steel of the best quality on the market has undergone substantial improvements in its ability to cut, thanks to feedback from operators of demolition and recycling sector. Remains intact the concept of hydraulic rotation 360 ° continuous that we first introduced on these special equipment. The available models can be assembled starting from mini excavators up to 45 tons. |
MODELLO MODEL |
PRESS. OLIO OIL PRESS. |
PESO
OTTIMALE ESCAVATORE WEIGHT EXCAVATOR |
PORTATA
OLIO OIL FLOW |
PESO WEIGHT |
DIMENSIONI -
DIMENSIONS
|
|||||
Bar | Ton. | Lt. | Kg. | A | B | C | D | E | F | |

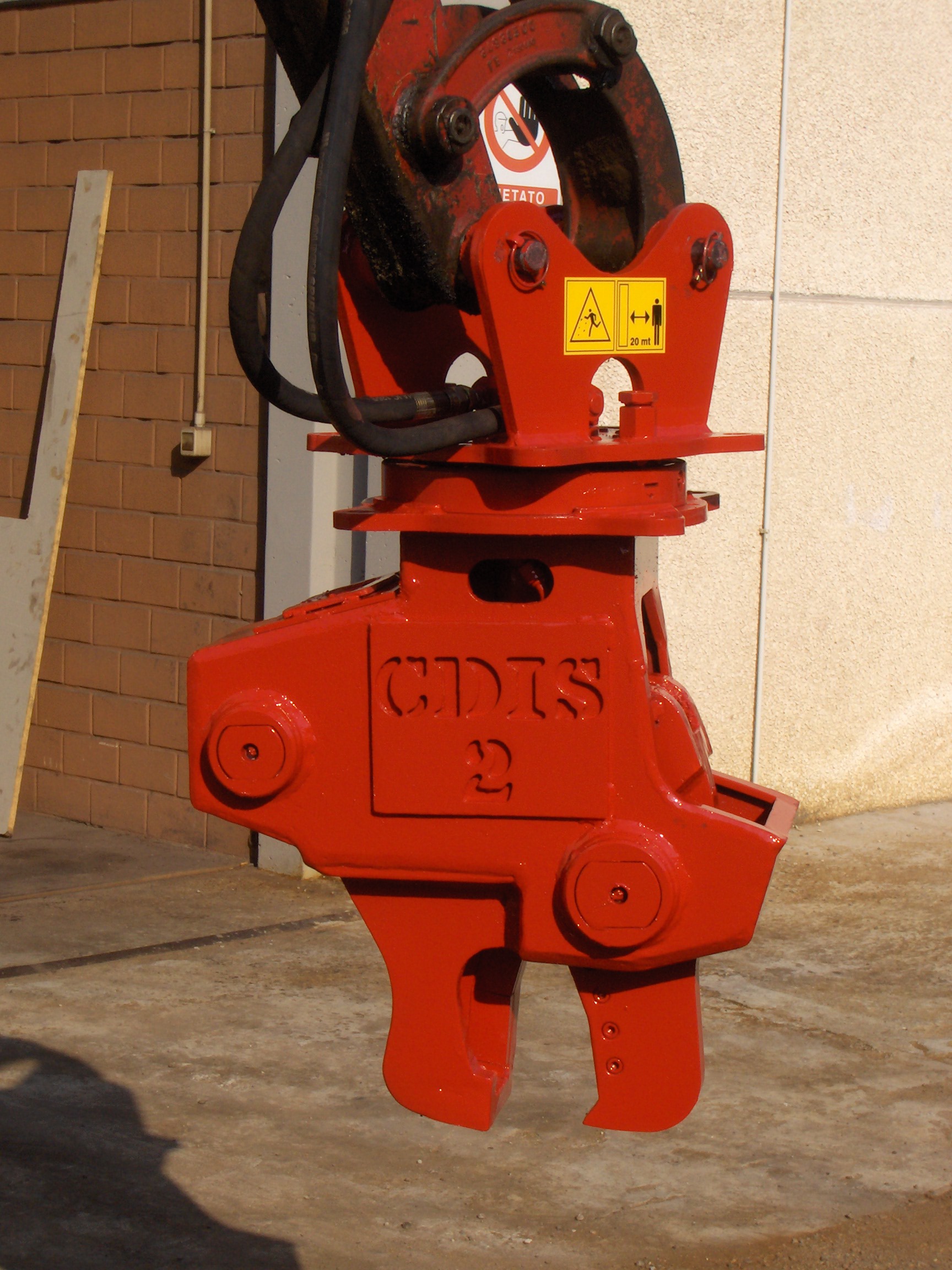

C.D.I.S. 2 | 250 | 1.6-1.8 | 30 | 230 | 100 | 300 | 500 | 600 | 600 | 140 |
C.D.I.S. 3 | 250 | 5-6.5 | 50 | 350 | 180 | 380 | 765 | 765 | 730 | 200 |
C.D.I.S. 5 | 250 | 6.5-8.5 | 80 | 500 | 220 | 500 | 900 | 1050 | 1050 | 280 |
C.D.I.S. 10 | 320 | 12.5-13.5 | 120 | 1000 | 300 | 750 | 1250 | 1400 | 1350 | 340 |
C.D.I.S. 15 | 320 | 17-20 | 200 | 1600 | 400 | 900 | 1400 | 1500 | 1450 | 400 |
C.D.I.S. 23 | 320 | 22-25 | 230 | 2500 | 500 | 1050 | 1760 | 1800 | 1700 | 420 |
C.D.I.S. 30 | 320 | 27-33 | 300 | 4000 | 600 | 1300 | 2150 | 2300 | 2200 | 560 |
C.D.I.S. 40 | 320 | 36-44 | 350 | 6000 | 700 | 1450 | 2250 | 2550 | 2400 | 600 |
